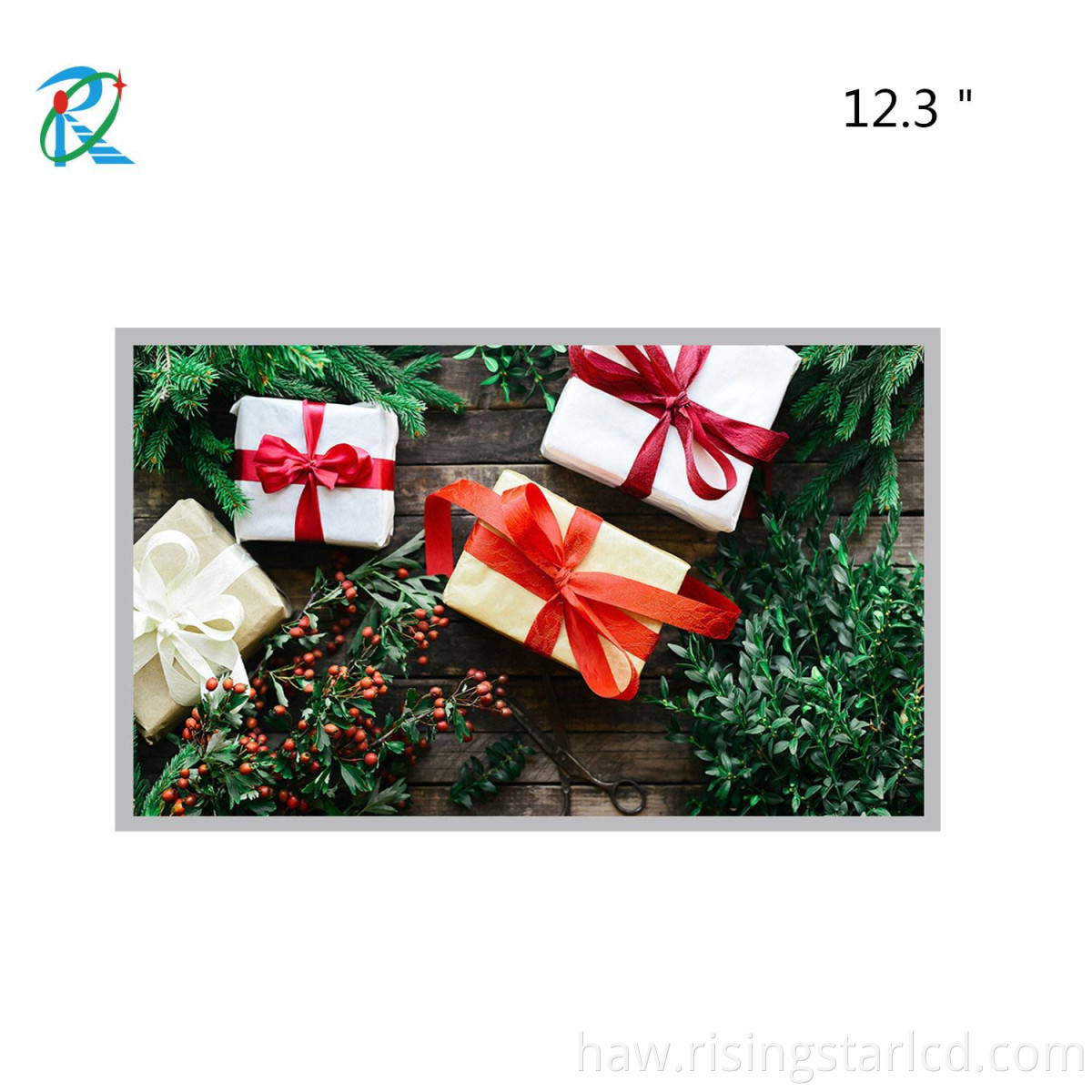

12.3 "lg la123wf1-sr01 tft lcd module

Min. Kāpena:1 Piece/Pieces

Huahana Huahana
Hāʻawe & lawe
Other information

Huahana Huahana

Hoʻohālike No.: LA123WF1-SR01

Hāʻawe & lawe

Nā Uniona Kuai:

Piece/Pieces

Huahana hou hoʻopuka

12.3 ITCH LG Hōʻike iā La123Wf1-Sr01 Highling LCD i ka leka uila LCD iʻikeʻia.

Models of the same brand and size: LA123WF1-SR01, LA123WF1-SR03 ,LA123WF4-SR03,LA123WF5-SL01,LA123WF4-SR08,LA123WF4-SL02,LA123WF4-SL01,LA123WF4-SR01,LA123WF4-SL03,LA123WF3-SR02,LA123WF1- Sr.2, la123wf4-sr09.

Hiki iāʻoe ke koho i keʻano kūpono kūpono e like me kāu mau pono.

brand	LG Display (LG Display)	Model name	LA123WF1-SR01
size	12.3 inch	Screen type	a-Si TFT-LCD,LCD module
resolution	1920(RGB)×720 167PPI	Pixel configuration	RGB vertical bar
Display size	292.032×109.512(H×V)mm	Surface treatment	Hard coating
Brightness(cd/m²)	600 cd/m² (Min.) or customized	contrast	800:1 (Typ.) [transmission]
Viewing Angle	89/89/89/89 (Min.)(CR≥10)	Appearance of size	310×128×11.05mm(H×V×D)
Signal system	110 pins RSDS (2 Channel) , FPC
Maximum rated	Storage temperature: -40 ~ 95 °C Working temperature: -40 ~ 85 °C

12.3-2

Nā Kuhi Uila: 12.3 "Lg la123wf1-stpe lcd hydlelo, he lōʻihi ka hōʻike o ka hōʻike LCD LCD , Kōkuhi TIRT no TV , 43
